Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve

Name: Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve
Brand: DONJOY
Price: 1 USD

Quality Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve for sale

Brand Name : DONJOY

Certification : CE,3A,FDA

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T, LC, Credit Card

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : according to order

Packaging Details : carton box or wooden box

Media : liquid

Operate Mode : pneumatic

Size : DN25 - DN100 or 1" - 4"

Max Pressure : 10 bar

Structure : single seat valve

Temperature : -10℃ to 120℃

Compressured air : 5-7bar

Contact Now

DONJOY stainless steel 304 316 hygienic sterilization configuration aseptic pneumatic divert seat valve

Specification

Product Name	DONJOY stainless steel 304 316 hygienic sterilization configuration aseptic pneumatic divert seat valve
Material of valve body	SS304 / 316L
Material of seal ring	EPDM
Max. working pressure	10 bar
Max. working temperature	120°C
Size	DN25 - DN100 or 1" - 4"
Connection	Threaded, welded, clamped
Standard	DIN, SMS, RJT, 3A
Operating mode	Manual, Pneumatic, Positioner
Certificate	FDA, CE, ISO
Double stop pneumatic actuator	To adjust the regulator to slow the moving speed of actuator, anti - shocking and lengthen the lifetime
Body seat	double seats
Body type	222type,221type,212type,211type,111type,121type,122type,112type
Feature	CIP/SIP cleaning
Installation	With double stop regulator

Features
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor

Air consumption (L/One cycle)

Size	Spring/iar	air/air
85	0.12	0.24
113	0.21	0.42
132	0.45	0.9
180	1.00	2.00

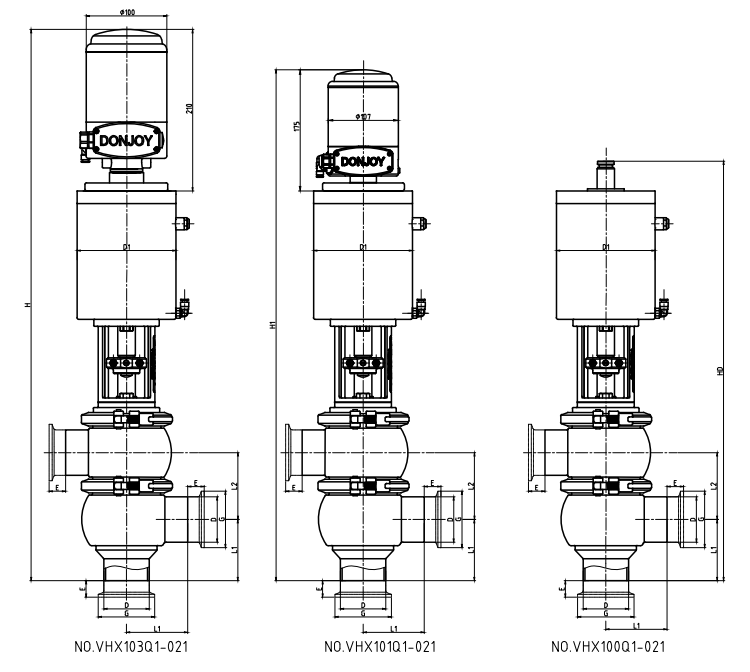

Product drawings

Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve
