Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light

Name: Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light
Brand: DONJOY
Price: 1 USD

Brand Name : DONJOY

Model Number : NO.VSJ400N1

Certification : CE/FDA/ISO/3A

Place of Origin : China

MOQ : Negotiation

Payment Terms : T/T,L/C, Credit Card

Packaging Details : Carton box, Wooden Case

Supply Ability : 500 sets 20 working days

Delivery Time : 10-30 working days

Name : flanged sight glass

SIZE : DN40-DN2000,1.5"-8"

Stanadard : DIN,3A,SMS,ISO

Connection : Welded, Clamped,Thread

Polished : Mirror, Matt

Max.temperature : -10 to 120 degree

Contact Now

clamp union sight glass Stainless Steel Sanitary Fittings clamp union light

Quick Detail

Flanged Sight Glass
Size:DN40-DN200,1.5"-8"
Gasket: EPDM,PTFE
Working Pressure:10Bar
Stainless steel shell, DC 24V power supply

Specification

Product Name:	clamp union sight glass Stainless Steel Sanitary Fittings clamp union light
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	PTFE in accordance with FDA177.2600
Sight glass:	tempered glass
Max.temperature:	-10- 120 degree
Battery:	use high light flashlight, rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customized. Or as per the request of customers
Delivery details:	10-20 days

Application
Flanged sight glass is comprised of stainless steel frame and glass. Through it, the operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmetic,pharmaceutical and fine chemicals industries.

Technical Features
High light, white cold source/waterproof, explosion-proof design.
Cable power supply AC110V-220V, DC24V
Wireless power supply, one charging can be used for 2-3 months (depending on the frequency of use) Assemble flange with glass by using hexagon socket bolts.

Product drawing

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light

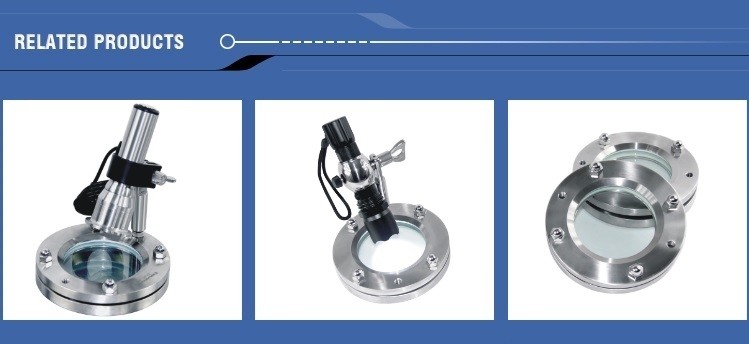

Product display

Clamp Union Sight Glass Sanitary Sight Glass Mirror Polished Clamp Union Light
